Specifications of the Electronic Water Pump Pressure Switch

This electronic adjustable pressure switch controller operates at 220/240V and is compatible with jet pumps, stage pumps, and garden pumps. It has a max current of 10A and supports water temperatures up to 60°C. With dimensions of approx. 22 x 15 x 15 cm and a weight of about 1.5 kg, it fits easily in most setups.

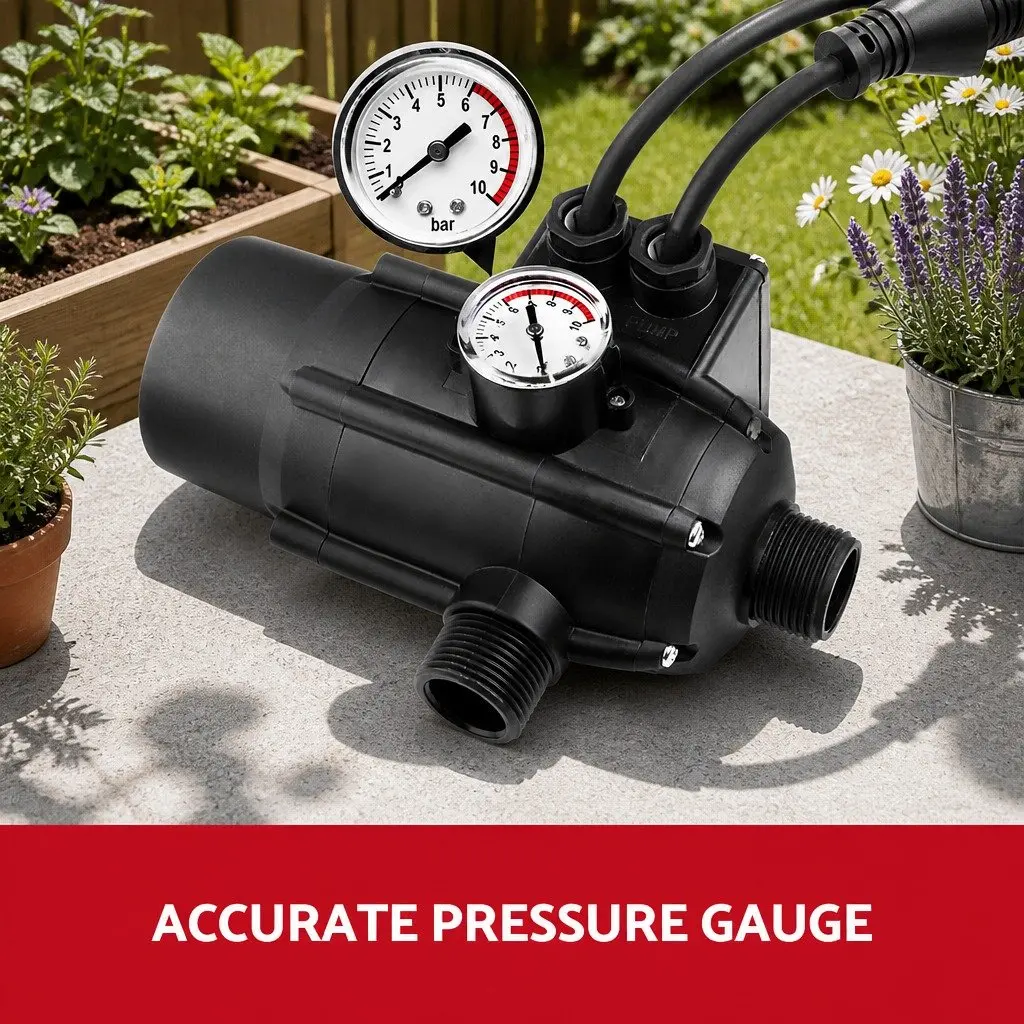

• Fully adjustable digital electronic pressure control
• Automatic on/off switching as water is required
• Provides stable pump performance
• Low maintenance operation
• Long lasting construction
• IP65 protection grade
• CE and C-tick certified

• Voltage: 220/240V, 50/60Hz
• Max. Current: 10A
• Frequency: 50/60Hz
• Max. Water Temperature: 60°C
• Starting Pressure: 1.5–3 bar
• Max. Pressure for Use: 10 bar

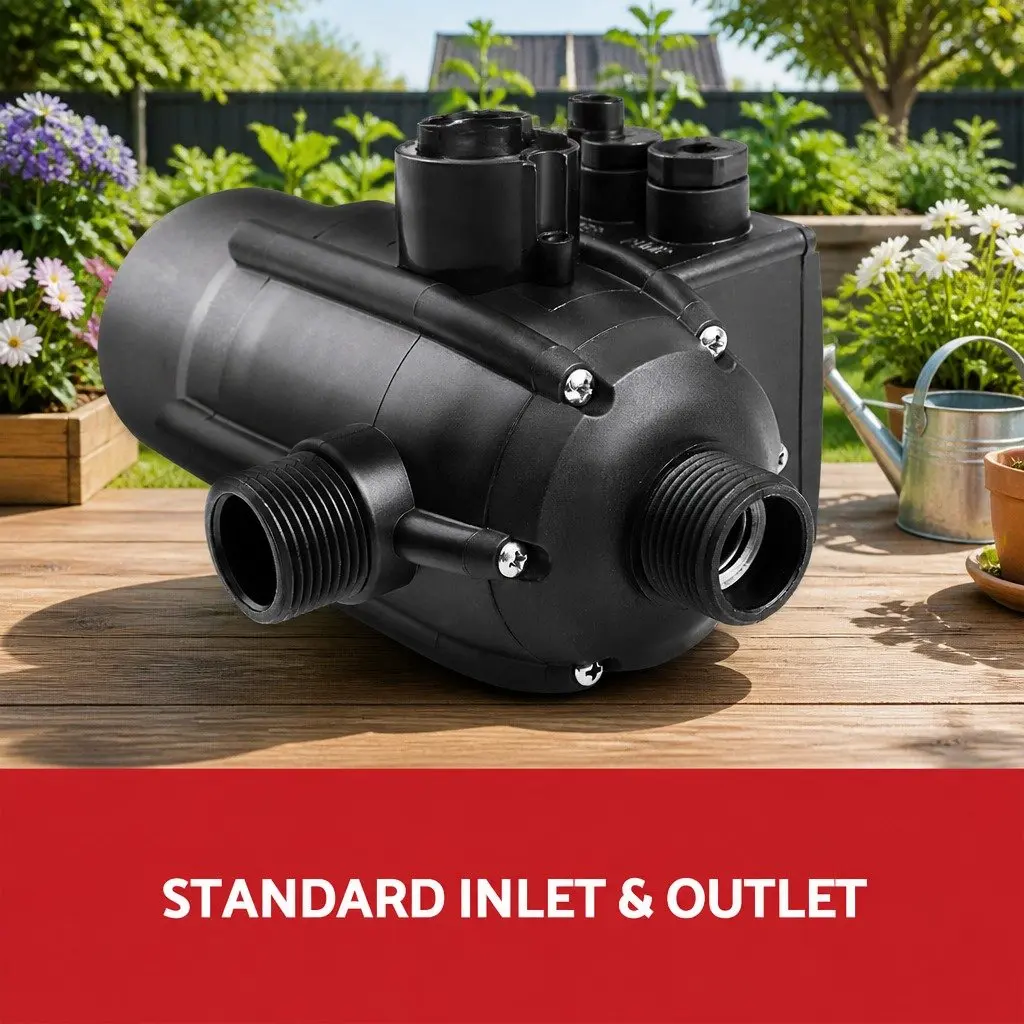

• Inlet/Outlet Size: 1″ (25mm)

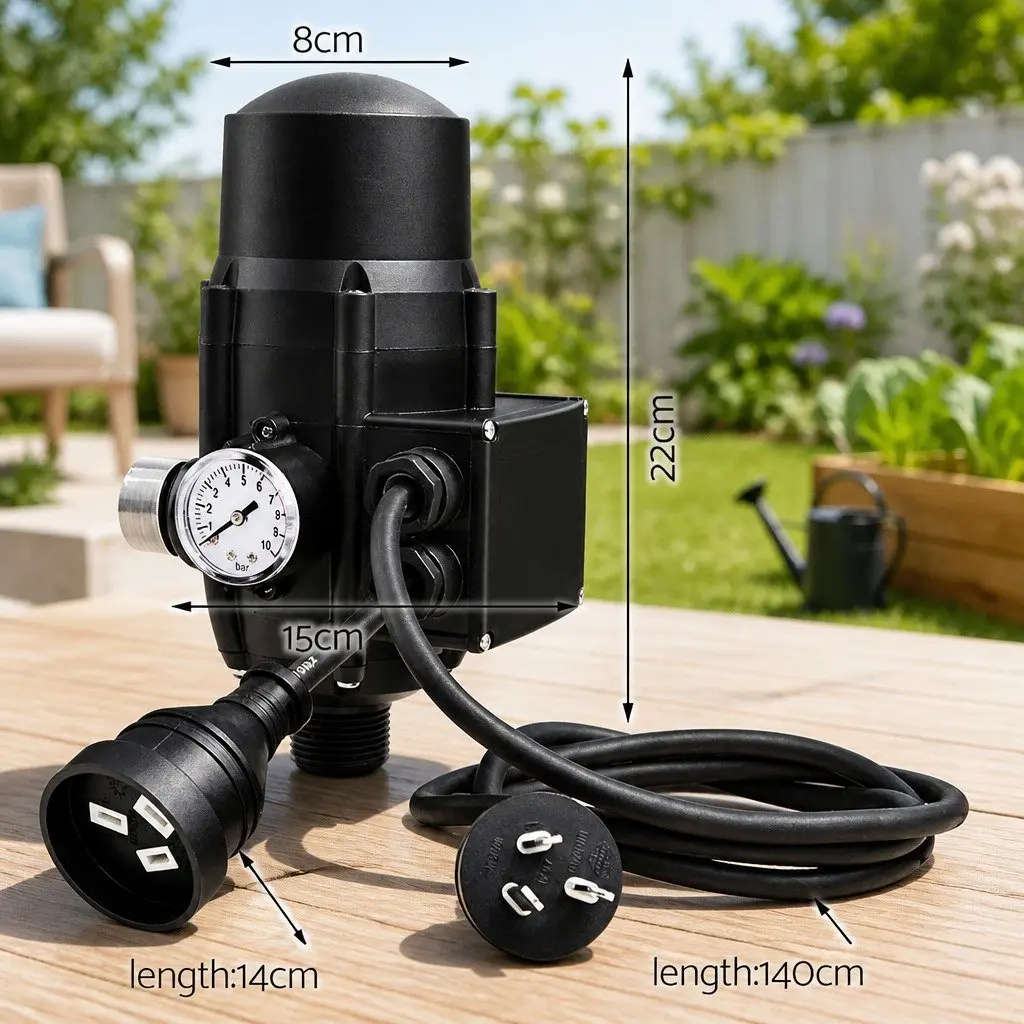

• Dimensions: approx. 22 x 15 x 15 cm
• Weight: approx. 1.5 kg

• 1 x Water Pump Pressure Controller
• 1 x User Manual

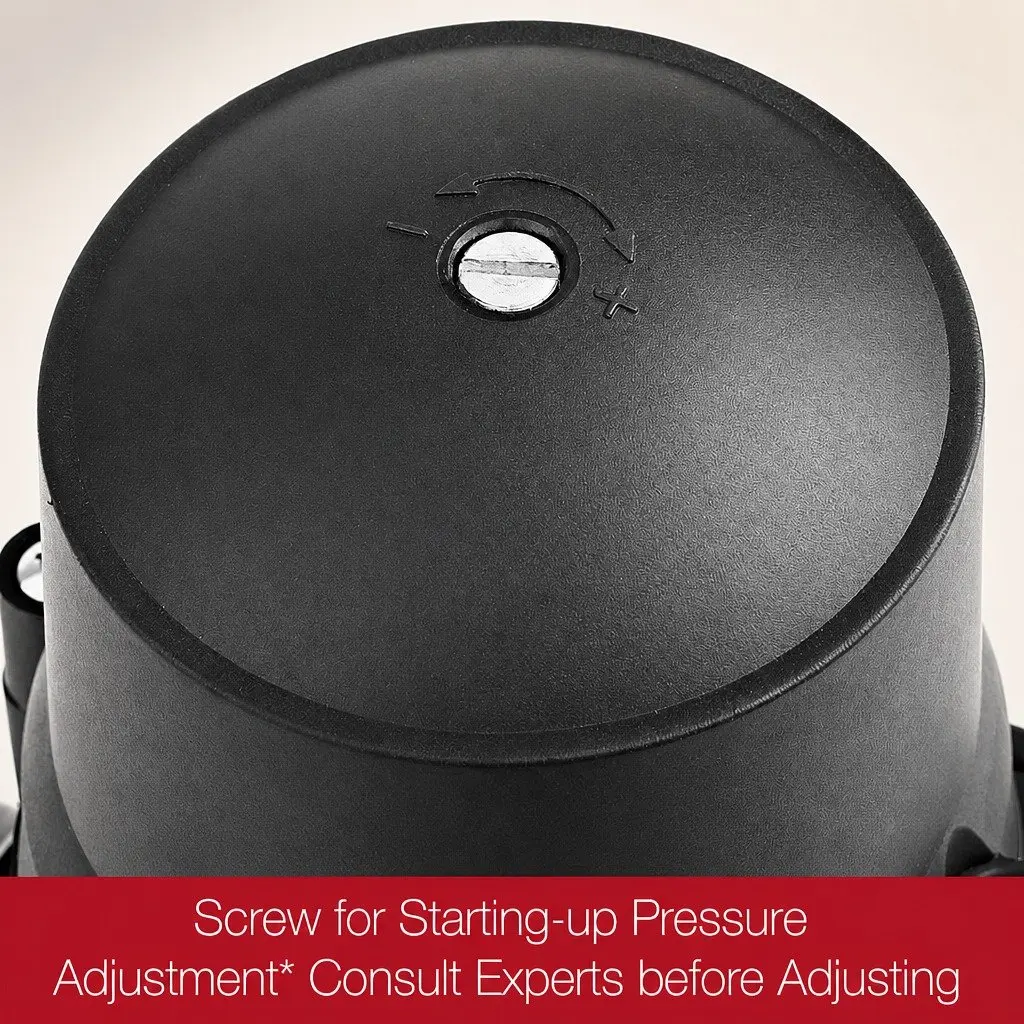

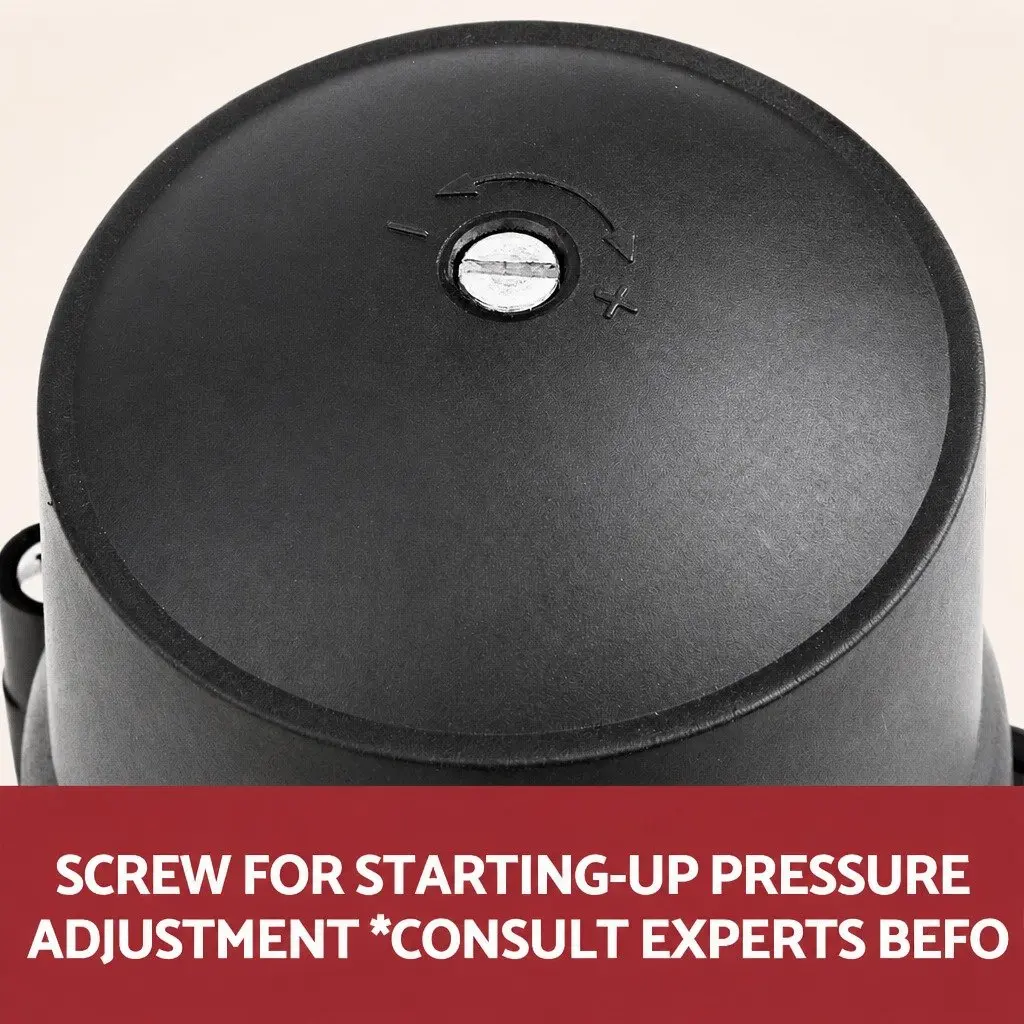

• Note: Consult an expert before adjusting starting pressure settings.
