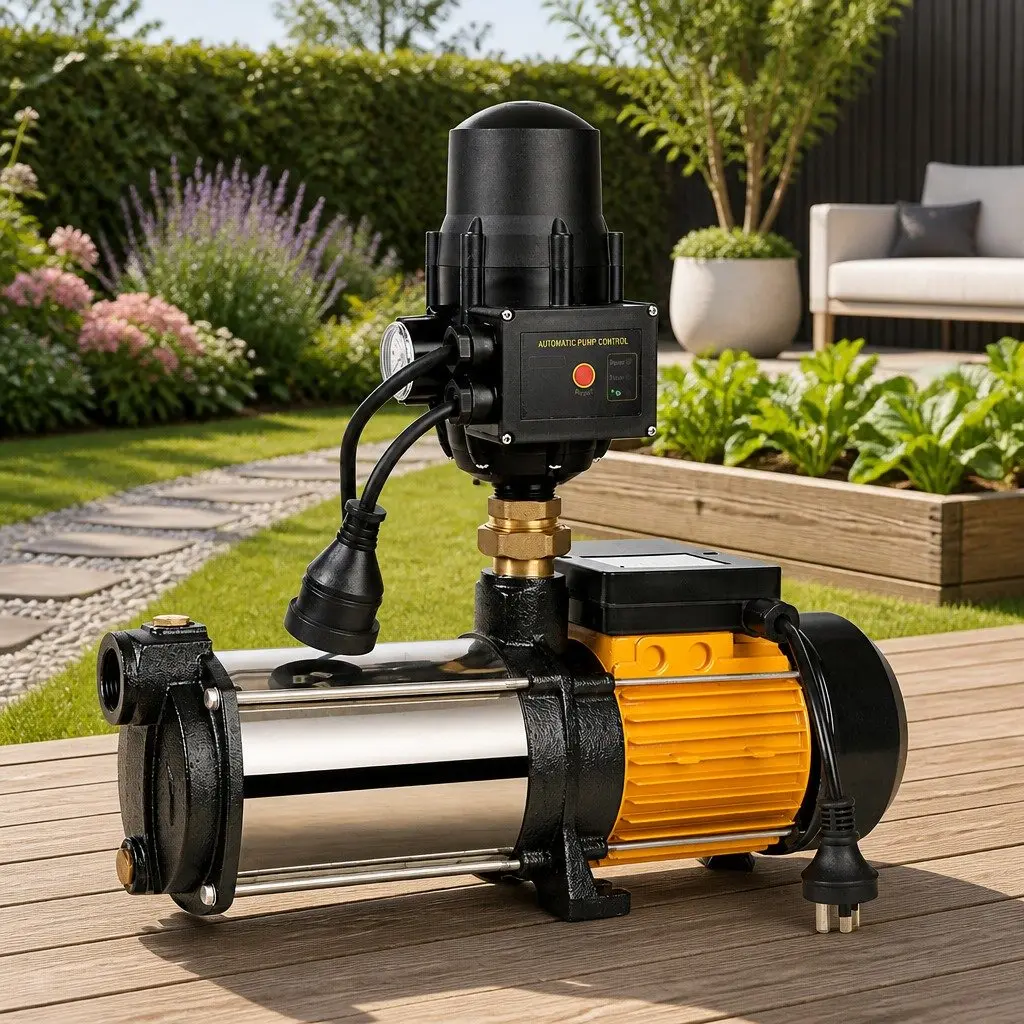

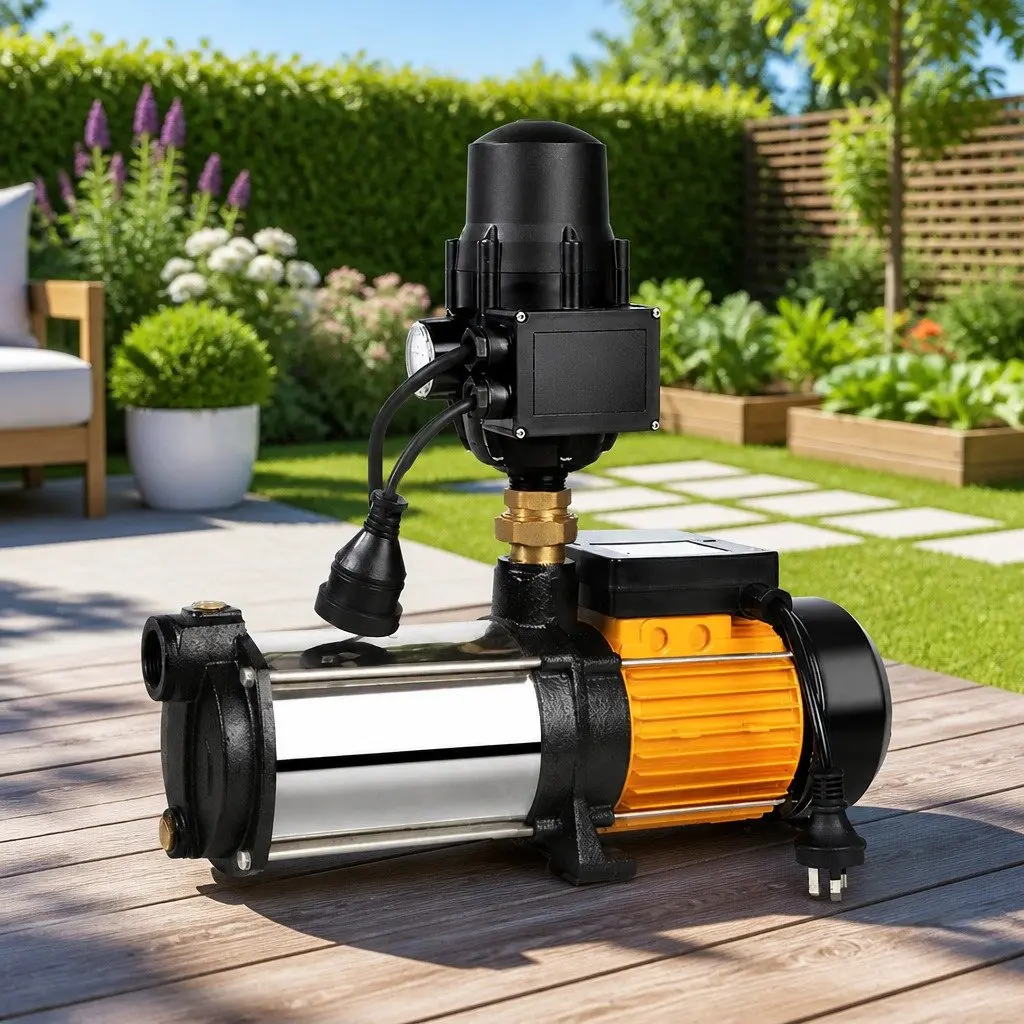

Specifications of the 2500W 5-Stage Water Pump

The 5-stage water pump features a sturdy stainless steel casing and measures approximately 22 × 15 × 15cm, weighing 15.5kg. Designed for a max input power of 2500W, it operates at 240V and offers a flow rate of 150L/min with an impressive 64m head. It includes a fully automatic pressure controller for ease of use.

• Powerful 1300–2500W self-priming multi-stage pump
• Maximum flow rate: 150L/min (9,000L/hr)
• 64m head – lifts water up to two stories high
• Stainless steel pump body with cast iron ends
• duty cycle for continuous operation

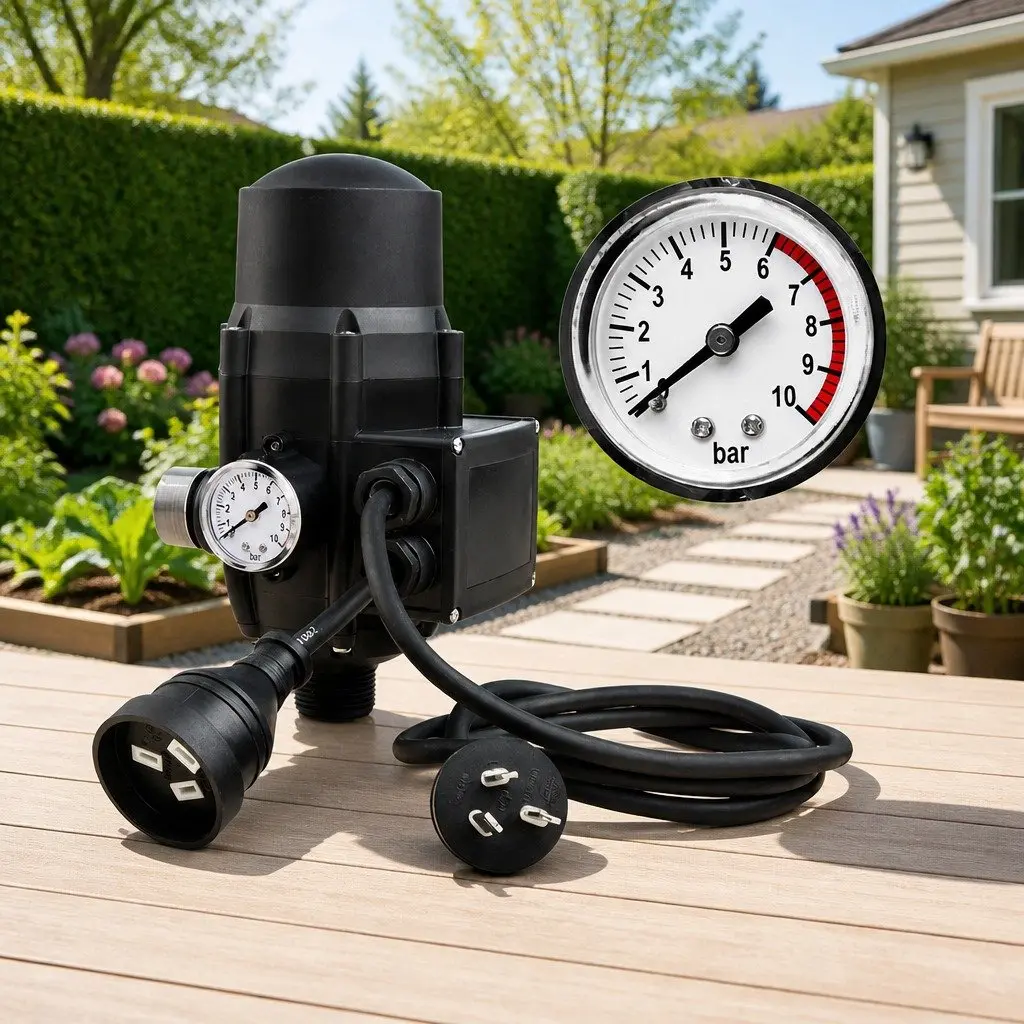

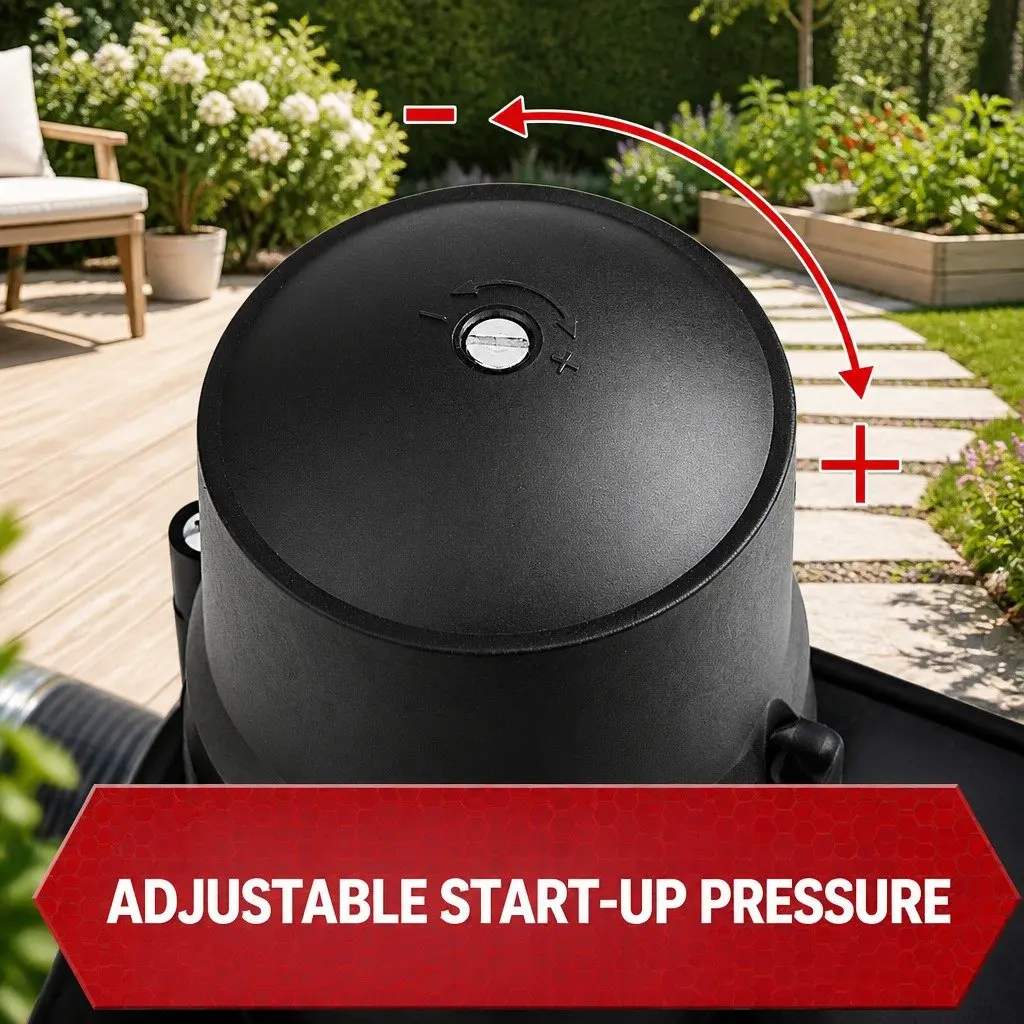

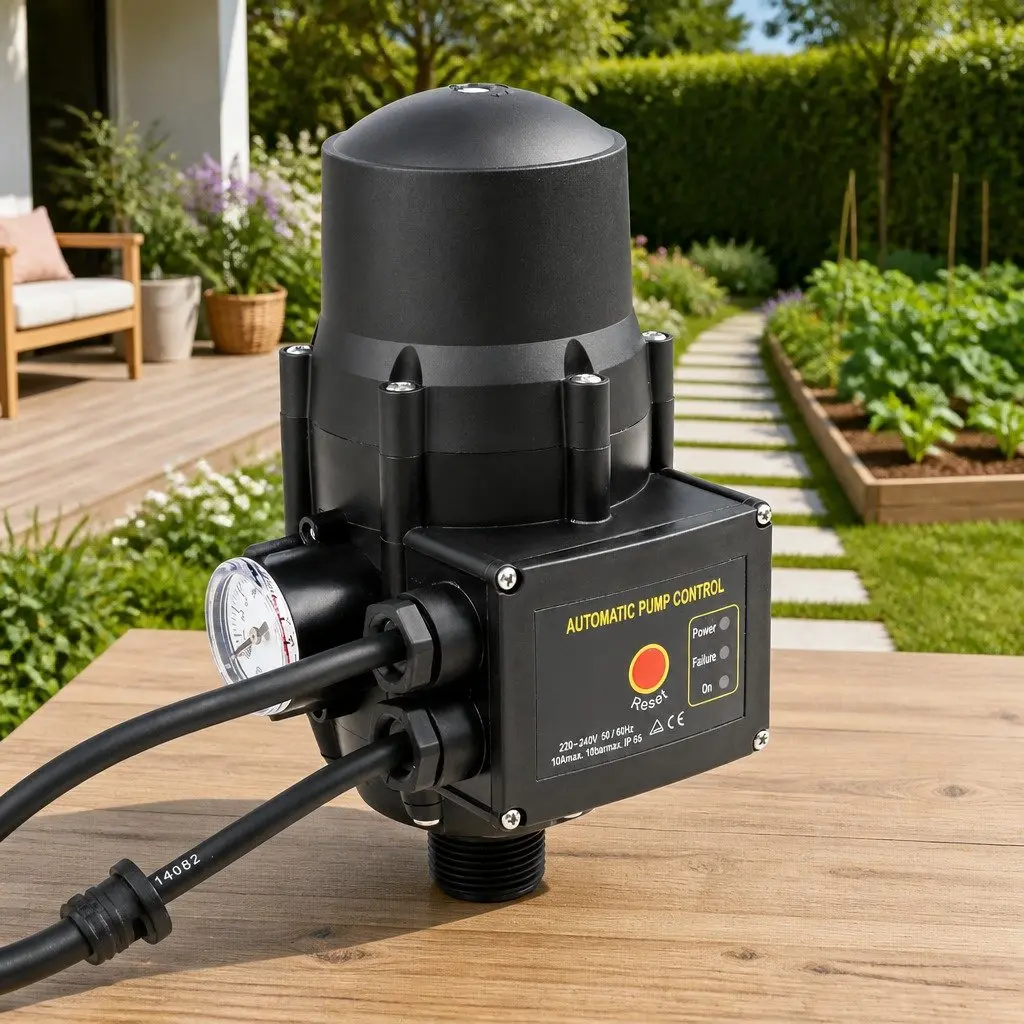

• Fully automatic on/off pressure controller with adjustable start-up pressure (1.5–3 bar)
• Pressure gauge for at-a-glance monitoring
• IP44 rated motor with IP65 controller protection
• Ceramic and carbon mechanical seals

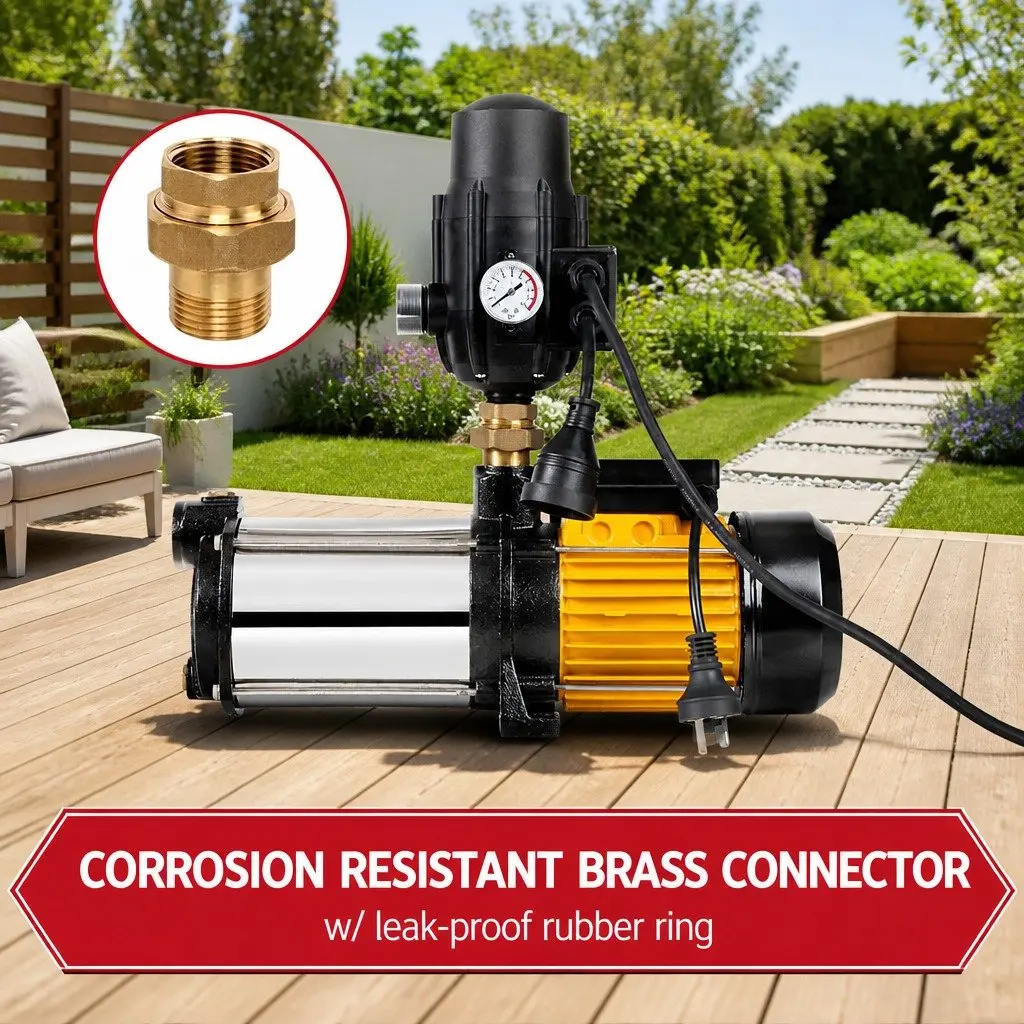

• Corrosion-resistant brass connectors
• Built-in thermal run-dry protection

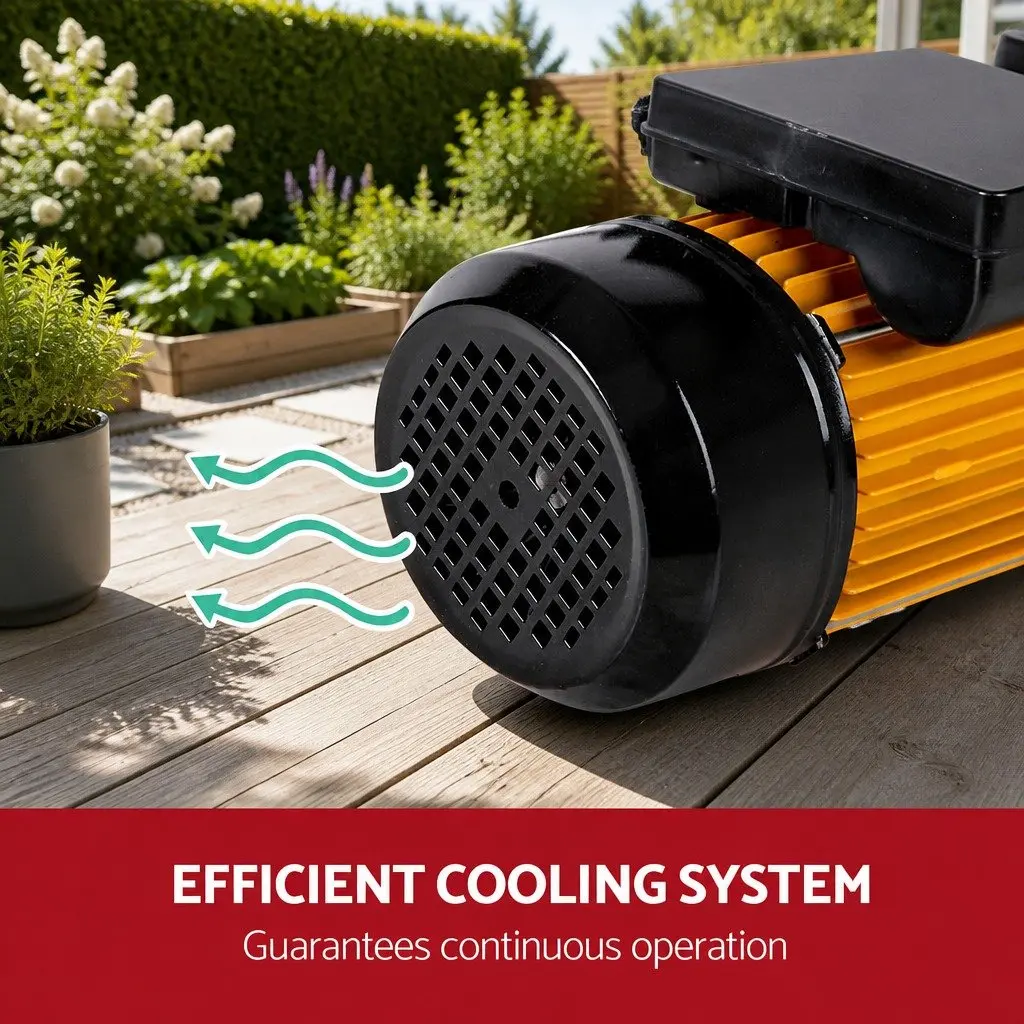

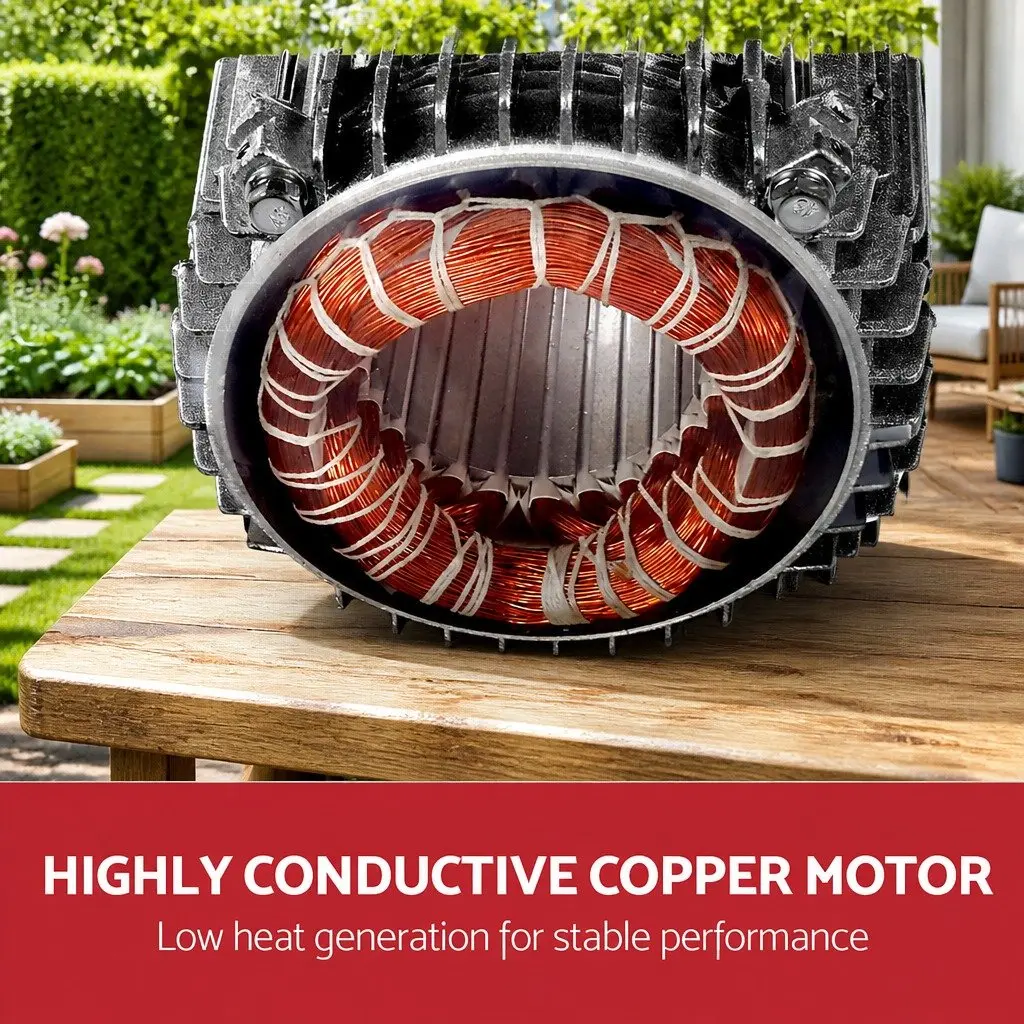

• Efficient cooling system with copper motor
• 1″ inlet and outlet ports
• 240V/50–60Hz operation – plug directly into standard socket
• Australian standard SAA cable and plug

• Pump Max Input Power: 2500W
• Pump Rated Input Power: 1300W
• Maximum Flow: 150L/min (9,000L/hr)
• Maximum Head: 64m
• Stages: 5
• Pump Casing: Stainless steel
• Inlet/Outlet: 1″ (25mm)
• Brass Connector: 1″
• Motor: Copper wire, IP44 protection class
• Mechanical Seal: Ceramic/Carbon
• Controller Voltage: 240V, 50/60Hz
• Maximum Current: 10A
• Maximum Water Temperature: 60°C
• Starting Pressure: 1.5–3 bar
• Maximum Operating Pressure: 10 bar
• Controller Protection Grade: IP65
• Approx. Dimensions: 22 × 15 × 15cm
• Approx. Pump Weight: 15.5kg
• Approx. Controller Weight: 1.5kg
• Colour: Black

• 5-Stage Water Pump × 1
• Pump Controller × 1
