600W Macerator Pump Specifications and Features Overview

Designed for waste water disposal, this macerator pump operates at 600W and 240V with a powerful 2850 RPM motor. It includes three inlet ports (1 x 83mm and 2 x 38mm) and supports multiple pipe fittings for versatility. The pump can handle a max vertical head of 9.5m and a horizontal length of 70-100m, providing reliable performance under various conditions.

• Fully automatic operation triggered by flushing

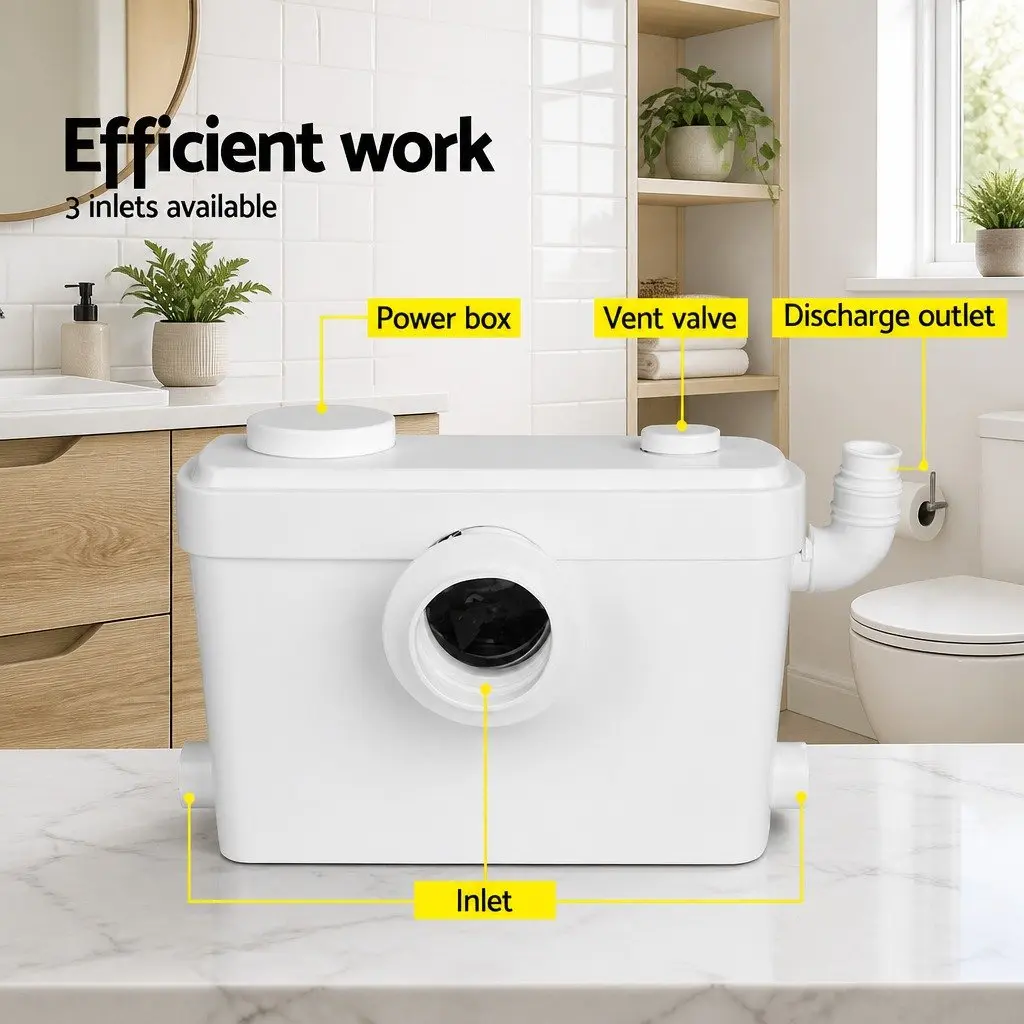

• 3 inlet ports for multiple sanitary device connections

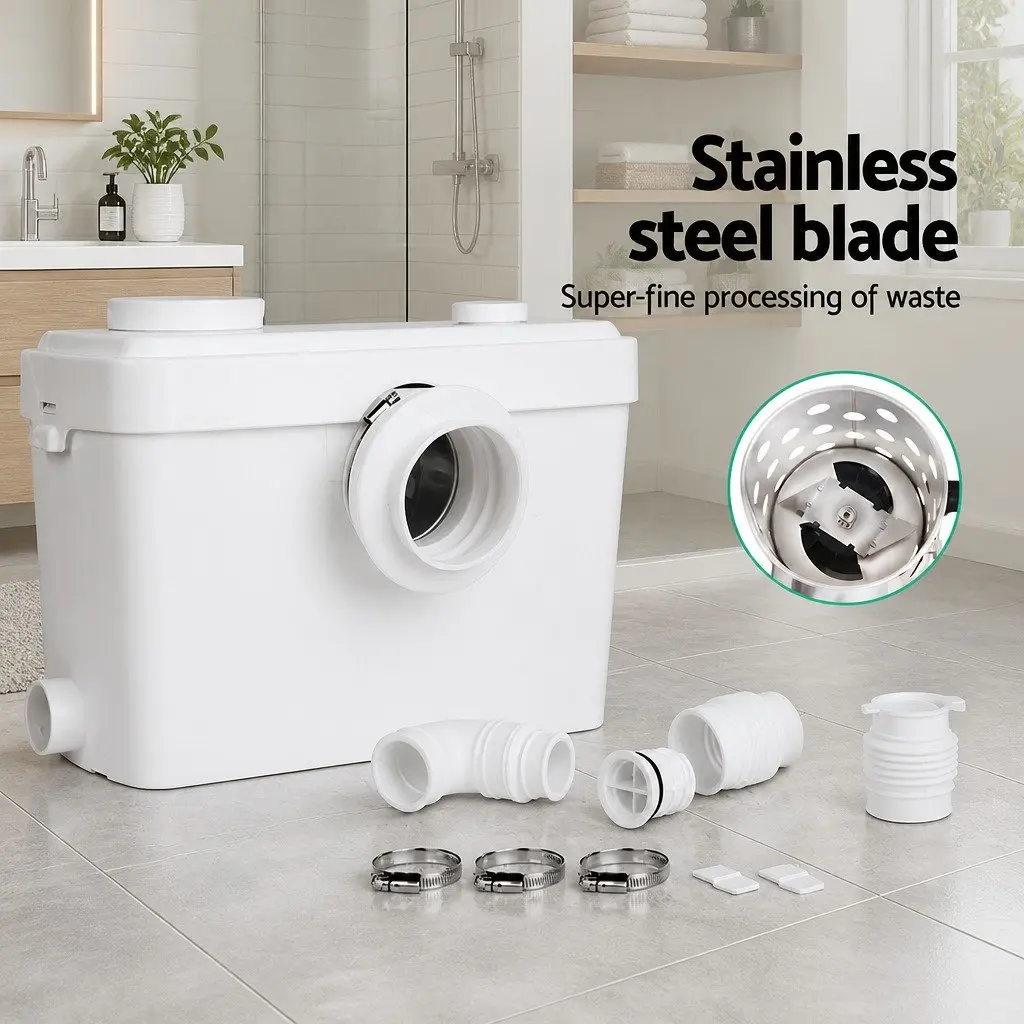

• Stainless steel blades for fine waste cutting
• 2850 RPM powerful motor
• Non- valves included
• Multi-size pipe fittings
• Quiet operation: 25-35dB
• Aluminium motor casing

• Power: 600W
• Voltage: 240V / 50Hz

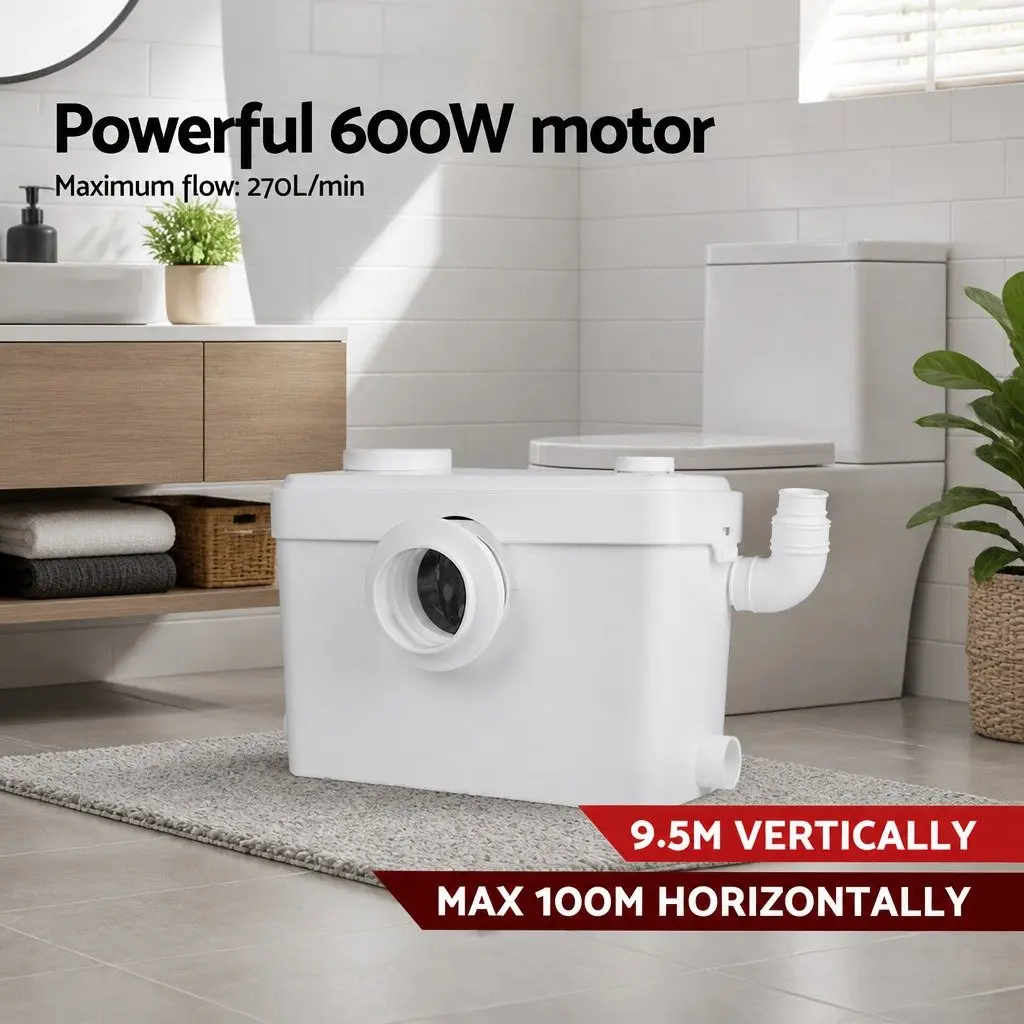

• Max. vertical head: approx. 9.5m
• Max. horizontal length: approx. 70-100m (depending on pipe size)
• Max. flow rate: 270L/min
• Max. water temperature: 40°C
• Min. water temperature: 1°C
• Inlet sizes: 1 x 83mm, 2 x 38mm (inner diameter)
• Outlet sizes: 30mm, 38mm, 45mm (alternative)
• Capacitor: 12UF 450V
• Colour: White

• 1 x 600W Macerator Pump
• 1 x User Manual
